Can we construct a BST from any 2 of its preorder/postorder/inorder traversals (actually, traversal sequences)? The answer is yes. In order to understand why we can do so, we need to have a deep understanding of the properties not only of BST but also of its traversals.

We briefly recap the BST data structure first:

class TreeNode {

    int val;
    TreeNode left;
    TreeNode right;

    TreeNode() {
    }

    TreeNode(int val) {
        this.val = val;
    }

    TreeNode(int val, TreeNode left, TreeNode right) {
        this.val = val;
        this.left = left;
        this.right = right;
    }

    public static void preorder(TreeNode root, List<Integer> list) {
        if (root == null) {
            return;
        }
        list.add(root.val);
        preorder(root.left, list);
        preorder(root.right, list);
    }

    public static void postorder(TreeNode root, List<Integer> list) {
        if (root == null) {
            return;
        }
        postorder(root.left, list);
        postorder(root.right, list);
        list.add(root.val);
    }

    public static void inorder(TreeNode root, List<Integer> list) {
        if (root == null) {
            return;
        }
        inorder(root.left, list);
        list.add(root.val);
        inorder(root.right, list);
    }
}

We can easily get the subroot from preorder and postorder traversal subsequences, since the subroot must be positioned at the first and the last index, which can be inferred from the properties of preorder and postorder recursive calls.

But we cannot infer the position of the subroot solely from the inorder sequence: the position of the subroot seems to be arbitrary. But, if we can tell the position of the subroot from preorder or postorder sequences, we can determine the range of subroot.left and subroot.right by:

1. Find the position of the subroot in the inorder sequence
2. According to the property of inorder traversal, all elements that appear before the subroot are its left children, all elements that follow the subroot are its right children

As mentioned in my previous blog LeetCode Lowest Common Ancestor Problems | Lihang Liu’s Homepage, almost all binary tree problems are solved in recursion. If we are given inorder traversal sequence of a BST + one of its postorder or preorder traversal sequence, we can rebuild the BST by recursively finding the subroot and partitioning its left children and right children.

Let’s see the problems.

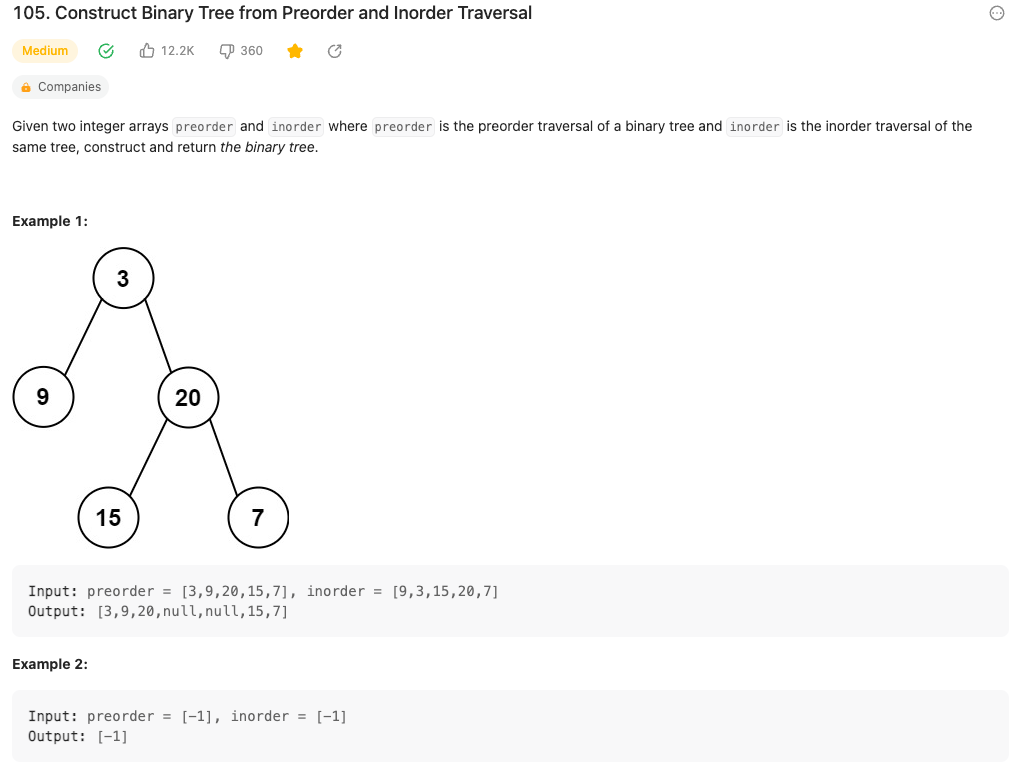

105. Construct Binary Tree from Preorder and Inorder Traversal #

Let’s first clarify the variables we’re going to use:

• rootPreIndex: The index of the subroot in the preorder sequence
• rootInorderIndex: The index of the subroot in the inorder sequence
• inorderLeft and inorderRight: refer to the recursion range for the subtree, i.e., inorder[inorderLeft : inorderRight] is the inorder sequence of the subtree. It is also used to control our recursive functions
• The length (size) of the left subtree: leftSubtreeSize = rootInorderIndex - inorderLeft

The algorithm works as follows:

1. We recursively built the BST using this TreeNode build(int[] preorder, int[] inorder, int rootPreIndex, int inorderLeft, int inorderRight) function
2. Find the subroot from the preorder subarr, the subroot is always the first element in preorder subarr, call the constructor to instantiate the subroot node
3. Determines the index of subroot, i.e. rootInorderIndex, in inorder subarr
4. Recursively built the left subtree:
   • The index of subroot.left in the preorder is rootPreIndex + 1
   • The inorderLeft for the left subtree is the current inorderLeft
   • The inorderRight for the right subtree is rootInorderIndex - 1
   • Call build(preorder, inorder, rootPreIndex + 1, inorderLeft, rootInorderIndex - 1)
5. Recursively built the right subtree:
   • The index of subroot.right in the preorder is rootInorderIndex + leftSubtreeSize + 1
   • The inorderLeft for the right subtree is rootInorderIndex + 1
   • The inorderRight for the right subtree is inorderRight
   • Recursively build right subtree by calling build(preorder, inorder, rootPreIndex + leftSubTreeSize + 1, rootInorderIndex + 1, inorderRight)

class Solution {
    public TreeNode buildTree(int[] preorder, int[] inorder) {
        return build(preorder, inorder, 0, 0, inorder.length - 1);
    }

    public TreeNode build(int[] preorder, int[] inorder, int rootPreIndex, int inorderLeft, int inorderRight) {
        if (inorderLeft > inorderRight || rootPreIndex < 0 || rootPreIndex >= preorder.length) {
            return null;
        }

        TreeNode root = new TreeNode(preorder[rootPreIndex]);

        int rootInorderIndex = -1;

        for (int i = 0; i < inorder.length; ++i) {
            if (inorder[i] == root.val) {
                rootInorderIndex = i;
                break;
            }
        }

        int leftSubTreeSize = rootInorderIndex - inorderLeft;

        root.left = build(preorder, inorder, rootPreIndex + 1, inorderLeft, rootInorderIndex - 1);
        root.right = build(preorder, inorder, rootPreIndex + leftSubTreeSize + 1, rootInorderIndex + 1, inorderRight);

        return root;
    }
}

106. Construct Binary Tree from Inorder and Postorder Traversal #

This problem does not differ a lot from 105. Construct Binary Tree from Preorder and Inorder Traversal we have covered. So I just leave my solution here:

class Solution {
    public TreeNode buildTree(int[] inorder, int[] postorder) {
        return build(inorder, postorder, postorder.length - 1, 0, inorder.length - 1);
    }

    public TreeNode build(int[] inorder, int[] postorder, int rootPostIndex, int inorderLeft, int inorderRight) {
        if (inorderLeft > inorderRight || rootPostIndex < 0 || rootPostIndex >= postorder.length) {
            return null;
        }

        TreeNode root = new TreeNode(postorder[rootPostIndex]);

        int rootInorderIndex = -1;

        for (int i = 0; i < inorder.length; ++i) {
            if (inorder[i] == root.val) {
                rootInorderIndex = i;
                break;
            }
        }

        int rightSubTreeLen = inorderRight - rootInorderIndex;

        root.left = build(inorder, postorder, rootPostIndex - rightSubTreeLen - 1, inorderLeft, rootInorderIndex - 1);
        root.right = build(inorder, postorder, rootPostIndex - 1, rootInorderIndex + 1, inorderRight);

        return root;
    }
}

889. Construct Binary Tree from Preorder and Postorder Traversal #

This problem is a little bit different from the previous two, we no longer have an inorder sequence to determine the left and right subtrees.

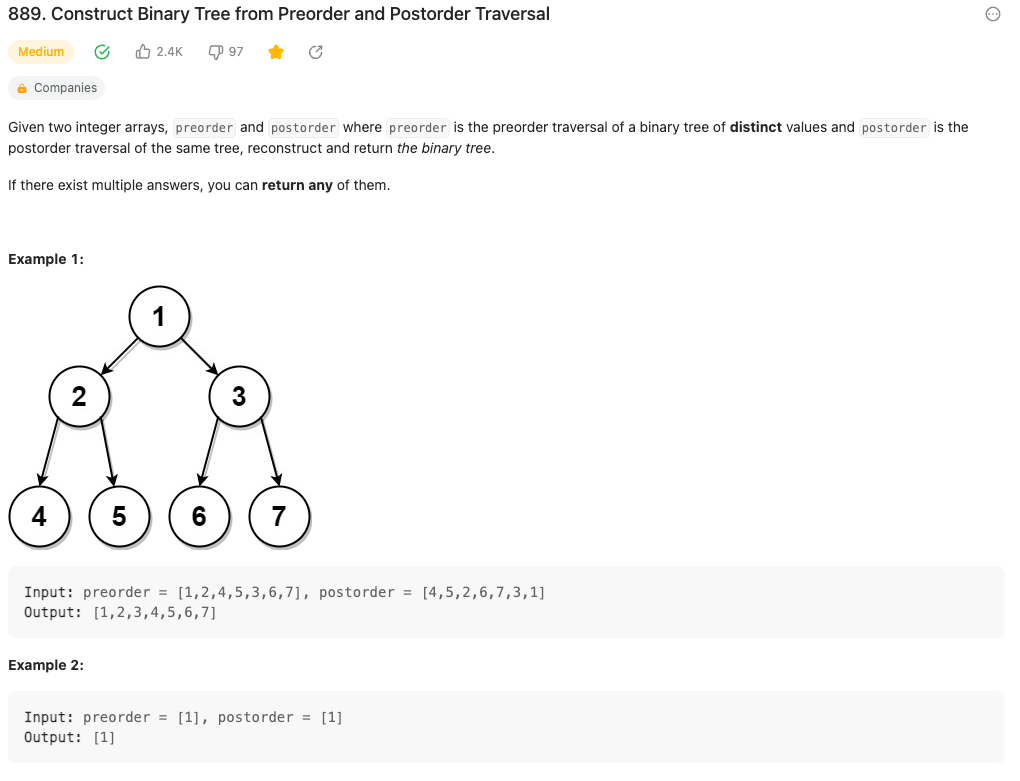

But, from the properties of postorder and preorder, we can still infer the ranges for both subroot.left and subroot.right subtress in the preorder and postorder. Take the example shown in the problem:

• The root is 1, it is the first element in preorder and the last element in postorder
• root.left is 2, which is right after root in preorder, and right before root in postorder
  • From here, we can do a linear scan to find the index of root.left in the postorder subsequence. Note that the index for root.left in the left subtree is denoted as leftSubRootPostIndex
  • After obtaining the position of root.left in postorder, we can calculate the length of the left subtree using: leftSubtreeLength = leftSubRootPostIndex - postLeft + 1
  • In the example, root.left is 2, and its index in postorder is 2, so the length of the left subtree is 2 - 0 + 1 = 3
• After obtaining the length of the left subtree, we can calculate the range of the left and right subtree in preorder and postorder:
• For the left subtree:
  • The preorder starts at rootPreIndex + 1, ends at rootPreIndex + leftSubtreeLength (ps, in the code, rootPreIndex is named preLeft)
  • The postorder starts at postLeft, ends at postLeft + leftSubtreeLength - 1, this can be inferred from the properties of post-order traversal
• For the right subtree:
  • The preorder starts at preLeft + leftSubtreeLength + 1, ends at preRight
  • The postorder starts at postLeft + leftSubtreeLength ends at postRight - 1

As you can see, we can infer the ranges for the subtrees by combining the information obtained from both traversals:

• From the preorder, we know root is preorder[0], root.left is preorder[1]
• Once we know root.left, we can do a linear scan to find its index in postorder
• Once we know the index of root.left in postorder, we can calculate the length of the left subtree
• Once we know the length of the left subtree, the length of the right subtree, plus the starting and ending index for preorder and postorder for the recursive calls, can be calculated

Can we build the solution using the length of the right subtree? Of course we can. Since root.right appears right before the root in postorder, we can do a linear scan to find its index in preorder, then we can calculate the length of the right subtree. The implementation is different, but the idea is similar.

class Solution {
    public TreeNode constructFromPrePost(int[] preorder, int[] postorder) {
        return build(preorder, postorder, 0, preorder.length - 1, 0, postorder.length - 1);
    }

    private TreeNode build(int[] pre, int[] post, int preLeft, int preRight, int postLeft, int postRight) {
        if (preLeft > preRight) {
            return null;
        }

        TreeNode root = new TreeNode(pre[preLeft]);

        if (preLeft + 1 > preRight) {
            return root;
        }

        int leftSubRootPostIndex;
        for (leftSubRootPostIndex = postLeft; leftSubRootPostIndex <= postRight; ++leftSubRootPostIndex) {
            if (post[leftSubRootPostIndex] == pre[preLeft + 1]) {
                break;
            }
        }

        int leftSubtreeLength = leftSubRootPostIndex - postLeft + 1;

        root.left = build(pre, post, preLeft + 1, preLeft + leftSubtreeLength, postLeft, postLeft + leftSubtreeLength - 1);

        root.right = build(pre, post, preLeft + leftSubtreeLength + 1, preRight, postLeft + leftSubtreeLength, postRight - 1);

        return root;
    }
}

Recap #

Given two sequences from inorder/preorder/postorder traversals of a binary tree, we can rebuild the binary tree by combining information from both traversals.

We can first determine the index of the root in both traversals. From there, given the properties of inorder/preorder/postorder traversals, we can easily tell the index for root.left or root.right. Then we can determine the length or the range for the left and right subtrees. Once we inferred the ranges, we can rebuild the original binary tree using recursive function calls.

LeetCode Problems #

• 105. Construct Binary Tree from Preorder and Inorder Traversal
• 106. Construct Binary Tree from Inorder and Postorder Traversal
• 889. Construct Binary Tree from Preorder and Postorder Traversal
• 1008. Construct Binary Search Tree from Preorder Traversal
